Double Parking Systems

Trendvario 6200+

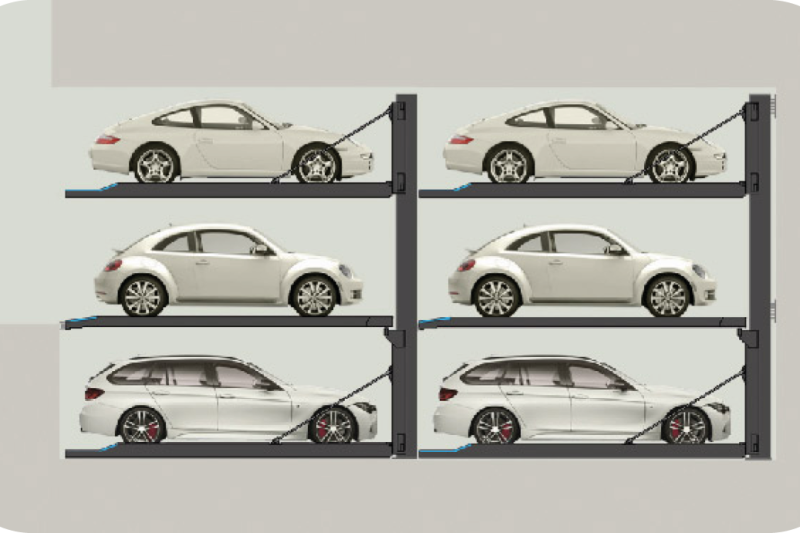

The TrendVario 6200+ can be combined with other TrendVario models.

The TrendVario 6200+ can be driven through, which means it can be easily combined with the TrendVario 6100, 6200+ and 6300, as well as the 6100+ and 6300+ (which can also be driven through), as an additional row of parking.

As no second access lane is required, this sort of combined parking system enables you to have even more parking spaces within the same floor area.

The TrendVario 6200+ accommodates two vehicles, one above the other. The parked vehicles are moved vertically and horizontally, and automatically transported to the desired position. For maximum operating safety, the access level is secured from the entire system by gates.

Trendvario 6200+ Specification

- For independent parking
- Can be combined with the TrendVario 6100, 6100+, 6300, 6300+ and 6200+
- 4 rows behind each other and 15 grids next to each other – up to 29 parking spaces are possible
- Building height: 330 cm to 460 cm in 5 cm increments
- Pit depth: not required
- Vehicle dimensions: height 150 cm to 210 cm, length 500 cm to 520 cm
- Usable platform width: 230 cm to 270 cm
- Platform load: 2,000 kg per parking space, optionally 2,600 kg or max. 3,000 kg
- Horizontal access to all parking levels
- Platform surface: StandardGrip, optional AluLongLife or EasyWalk
- Operation via SmartChip, SmartPortable or SmartApp

Specification: Gates

KLAUS V-Gate vertical gates, electrically
Electrically sliding gates as an option
Remote control as an option
Gate frame made from extruded aluminium profiles with two vertical centre stay bars for the vertical gate and one vertical centre stay bar for the sliding gate
Standard gating material: perforated aluminium plate
Optional for sliding gates:
Around 50 individual variations are possible in different materials and colours
Glass (laminated safety glass), wood (Nordic spruce), aluminium, steel and many other options available.
Interchangeable panels and segments

Field of Application

In residential and commercial buildings in large cities
For additional parking spaces in office buildings or residential and commercial buildings
To increase capacity in underground car parks or parking garages, e.g. of hotels
More parking spaces for car dealerships, car rental companies or vintage car collections
Ideal in the case of constructions abutting property lines

Product Data

DWG & DXF Files Available on Request
