Double Parking Systems

MultiBase 2072i

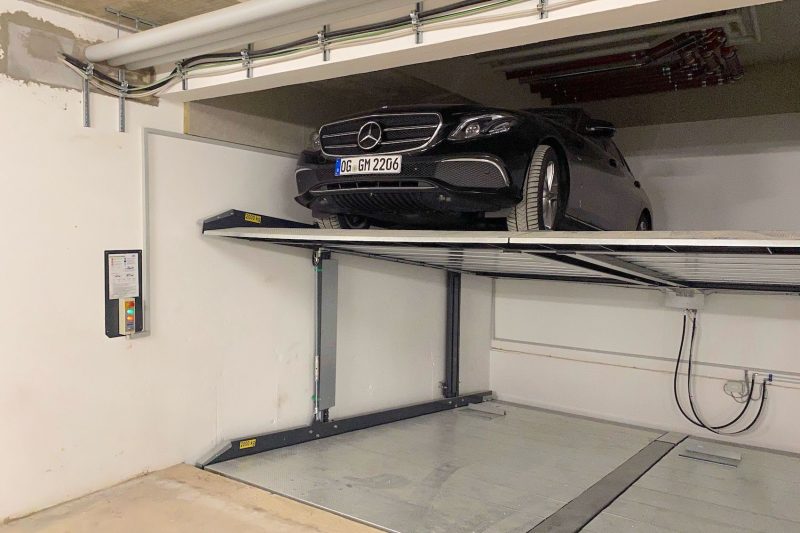

The MultiBase 2072i is one of the most comfortable parking systems, as the car door can be opened wide due to the offset steel pillar, which allows easy getting in and out of the car.

Compared to other suppliers, the MultiBase 2072i is also distinguished by the 5-cm-advantage. By that, less enclosed space is required. The system can store the heavyweights particularly space-saving and is ideally suited for off-road vehicles or SUV up to heights of 215 cm.

MultiBase 2072i Specification

- Single platforms (EB) for 2 vehicles or double-platforms (DB) for 4 vehicles
- Total height of standard type: 335 cm
- Pit depth of standard type: 180/185 cm
- Vehicle measurement: Heights from 150 to 215 cm, lengths from 500
to 520 cm
- Usable platform width for standard type: 230/460 cm, optionally up to max. 270/540 cm
- Standard design: 2.000 kg per parking space, optional max. 2.600 kg EB/DB or max. 3.000 kg EB
- Horizontal access to all parking levels
- Platform surface: StandardGrip, optional AluLongLife or EasyWalk
- Independent parking

Field of Application

Residential and commercial buildings, single and semi-detached houses, office buildings, single garage, underground parking lot, ready-made garages, car parks, hotels, outdoor installation, installation in backyards, installation in front garden

Product Data – MultiBase 2072i

Tender Specification – MultiBase2072i

Flyer MultiBase 2072i_2078i

DWG & DXF Files Available on Request
