Double Parking Systems

Trendvario 6100

The premium semi-automatic parking system with a pit.

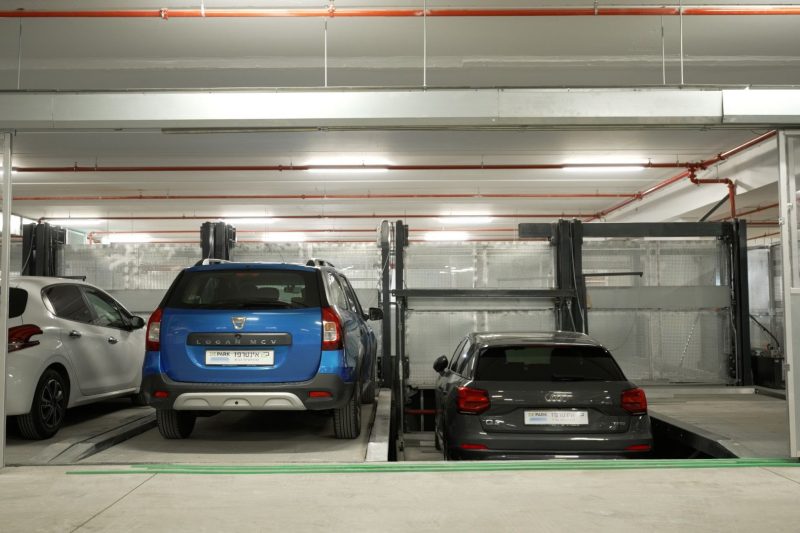

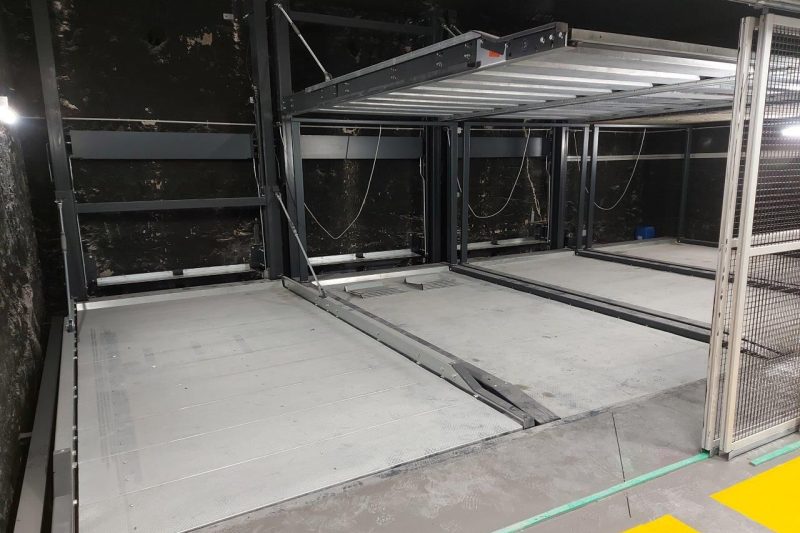

The TrendVario 6100 is accessed at ground level. The system can accommodate two vehicles one above the other, one of which is lowered into the pit. It requires less room height as a result.

The parking spaces are moved vertically and horizontally, and the automatic control system transports the selected parking space to the desired position. For maximum operating safety, the access level is secured from the entire system by gates.

This also protects the vehicles from theft and vandalism. You can also enhance your TrendVario 6100 with our premium accessories.

Trendvario 6100 Specification

- For independent parking
- 15 grids behind each other – up to 29 parking spaces are possible
- Building height: 220 cm to 265 cm in 5 cm increments
- Pit depth: 175 cm to 240 cm in 5 cm increments
- Vehicle dimensions: height 150 cm to 215 cm, length 500 cm to 520 cm
- Usable platform width: 230 cm to 270 cm
- Platform load: 2,000 kg per parking space, optionally 2,600 kg or max. 3,000 kg
- Horizontal access to all parking levels
- Platform surface: StandardGrip, optional AluLongLife or EasyWalk
- Operation via SmartChip, SmartPortable or SmartApp

Specification: Gates

  • Standard gates: sliding gates, electrical
  • Remote control as an option
  • Gate frame made from extruded aluminium profiles with a vertical centre stay bar
  • Standard gating material: perforated aluminium plate
  • Optional for sliding gates:
  • Around 50 individual variations are possible in different materials and colours
  • Glass (laminated safety glass), wood (Nordic spruce), aluminium, steel and many other options available.
  • Interchangable panels and segments

Field of Application

In residential and commercial buildings in large cities. For additional parking spaces in office buildings or residential and commercial buildings. To increase capacity in underground car parks or parking garages, e.g. of hotels

More parking spaces for car dealerships, car rental companies or vintage car collections. Ideal in the case of constructions abutting property lines.

Product Data

DWG & DXF Files Available on Request
