car Turntable
ParkDisc D450
The car turntable systems from KLAUS Multiparking are optimal parking and exiting facilities which can also be integrated into existing garages or car parks at a later date. For reasons of space garages often do not offer the space for turning, so backing in and out of parking spaces is often necessary.

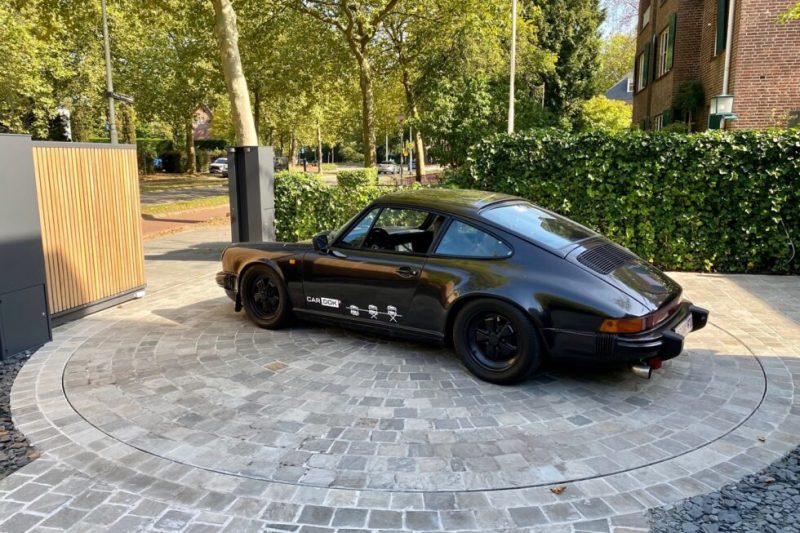

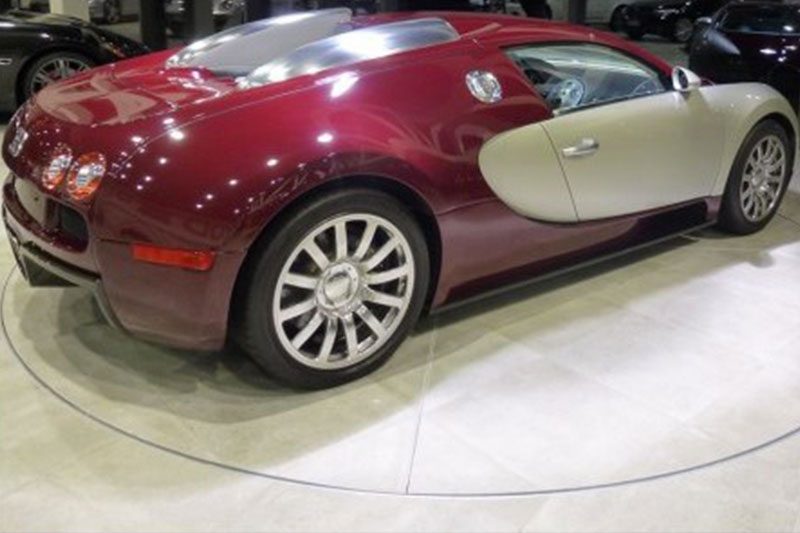

Just turn on your own axis, and just exit the garage – the ParkDisc D450 allows turning the car even if there is no space for maneuvering. The ParkDisc D450 is available as surface or underfloor system. Upon request, both diameter and surface load of the turntable can be increased.
Turn on the spot with the ParkDisc D450 Car Turntable
The ParkDisc D450, making hard-to-access parking spaces a thing of the past.
Field Of Application
Residential and commercial buildings, single and semi-detached houses, office buildings, installation in front of single garage, underground parking lot, installation in front of ready-made garages, car parks hotels car dealing business, car rentals, outdoor installation, subsequent installation in existing buildings.
Car Turntable Specification
- Over- und under-floor construction possible
- Vehicle measurement: widths max. 190 cm, lengths max. 500 cm (longer vehicles can be accommodated on request by option), heights for overfloor versions: 10 cm lower than headroom
- Standard design: 2.500 kg per parking space, optional higher load possible
- Platform coating: hot-dip checker plate
DWG & DXF Files Available on Request
